Tutorial

Integration - OnPay

Play Video

The OnPay Integration feature allows you to automatically send WhatsApp notifications to your customers or sellers when an order is placed through your OnPay form.

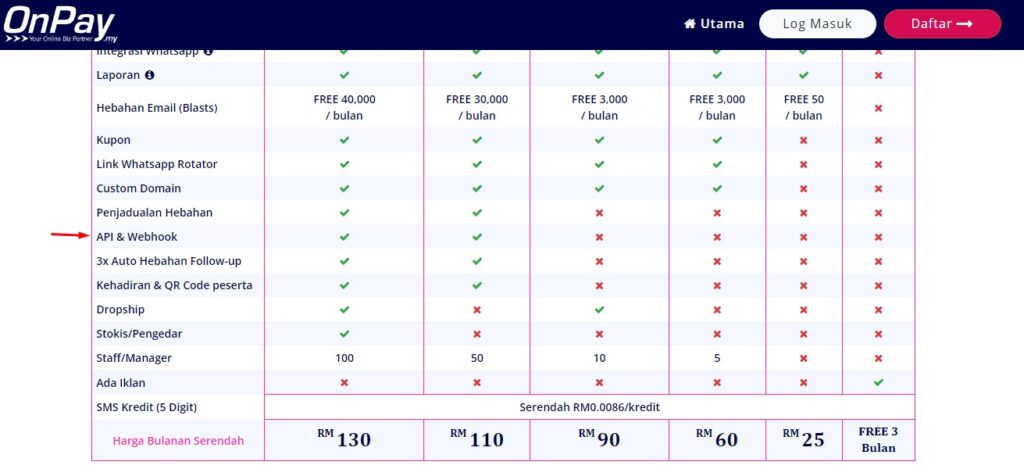

⚠️ You must have OnPay API & Webhook features enabled in your OnPay subscription to use this integration.

Step 1: Go to Integrations > OnPay

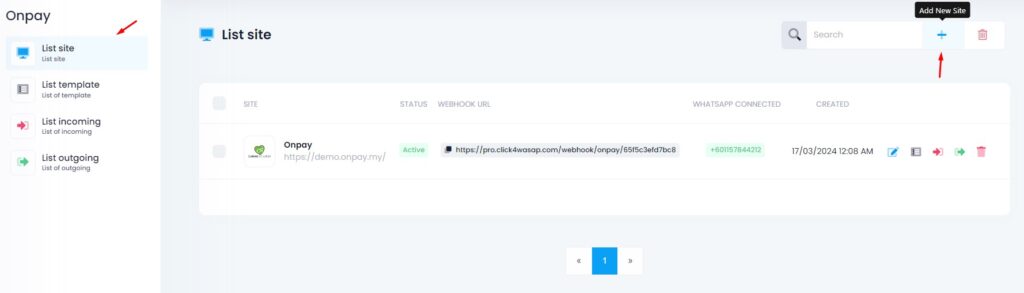

Step 2. Create New List Site

Click “Add New Site” to begin setup.

Step 3: Enter Your Website Details

  • Set Status to: ✅ Active
  • Upload your Website Logo
  • Enter your Website Name
  • Enter your Website Link
  • Enter your Website Currency

Step 4: API & Webhook Token

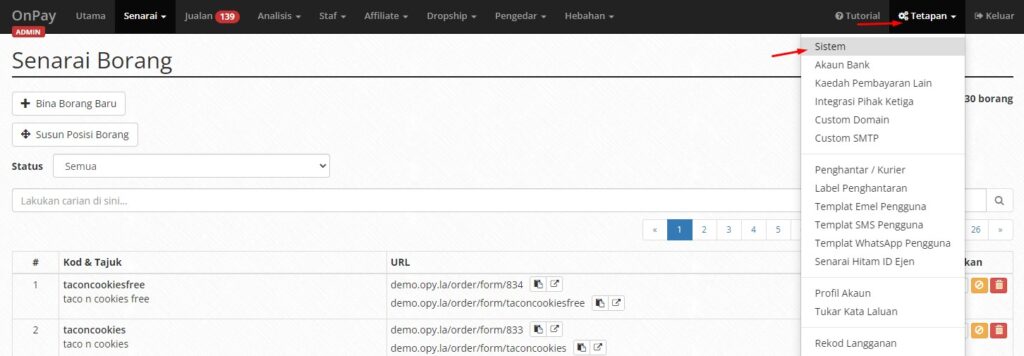

Go to Tetapan > Sistem (OnPay Dashboard)

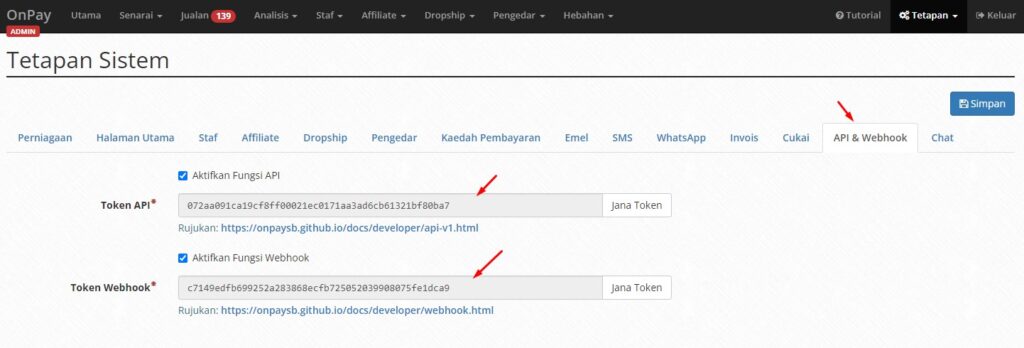

Choose API & Webhook tab, copy both Token API & Token Webhook (OnPay Dashboard)

Choose API & Webhook tab, copy both Token API & Token Webhook (OnPay)

Paste both Token API & Token Webhook at List Site (Click4Wasap)

Step 5: Select WhatsApp Sender(s)

  • Choose one or multiple WhatsApp sender numbers
  • If multiple, the system will auto-rotate the sender used
    ✅ Click SAVE when done

Step 6: Setup Webhook URL

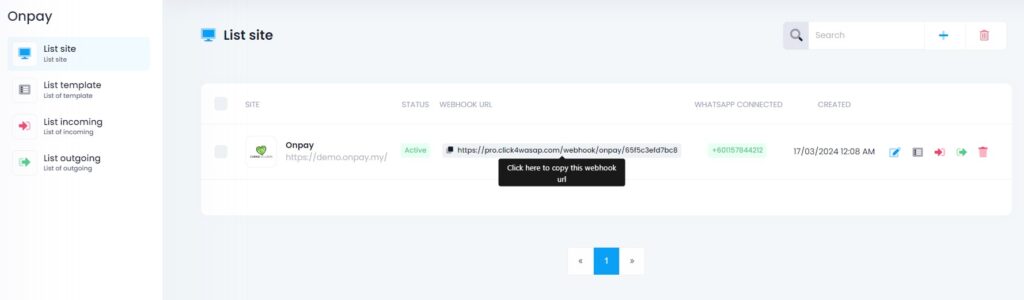

Copy the webhook URL for this List Site (Click4Wasap)

go to Senarai > Borang (OnPay)

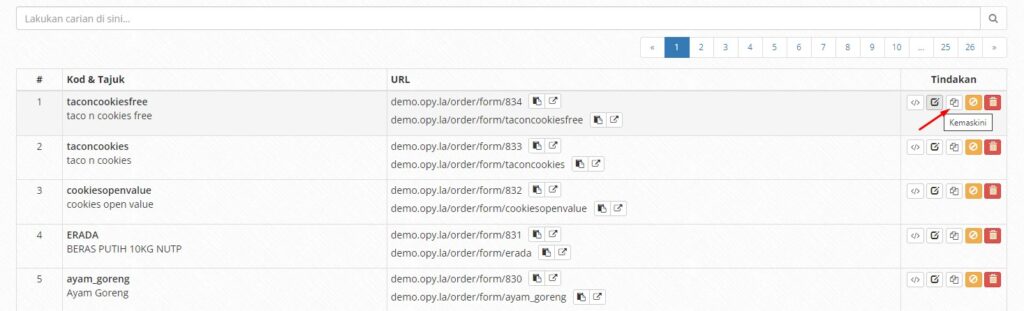

Click Kemaskini on the form you want (OnPay)

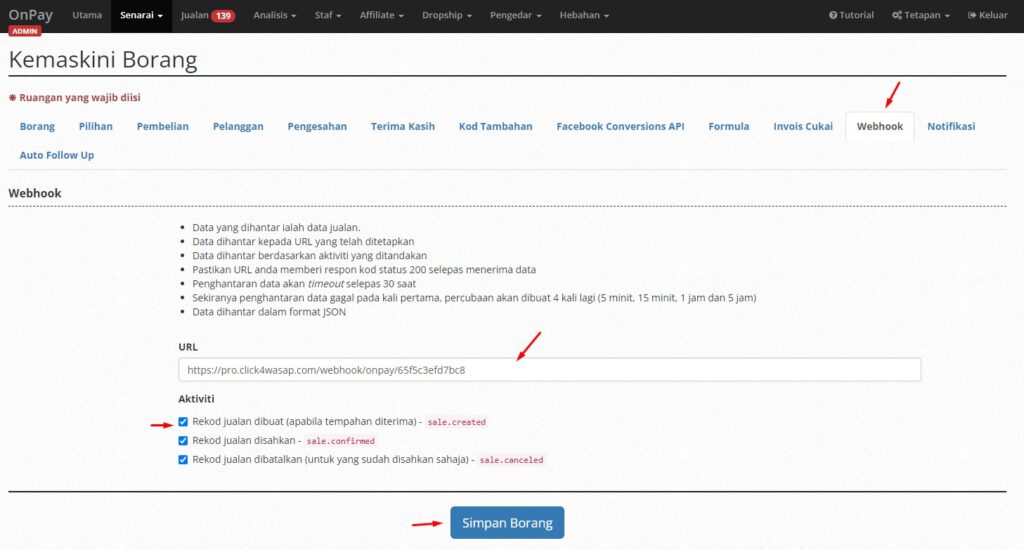

  • Open the Webhook tab
  • Paste the Webhook URL
  • Tick the relevant Aktiviti (events)
  • Click Simpan Borang

Step 7: Create Dummy Order at OnPay

Submit a test order to trigger the webhook and validate your connection.

Step 8: Check List Incoming

If everything is correct, the order data will appear under List Incoming.

 If you have multiple forms/sites, use the List Site filter to view incoming data for each form individually.

⚠️ Make sure your WhatsApp account is connected

  • 🟢 Green – Connected ✔️
  • 🔴 Red – Disconnected ❌

Messages won’t be sent if it’s disconnected

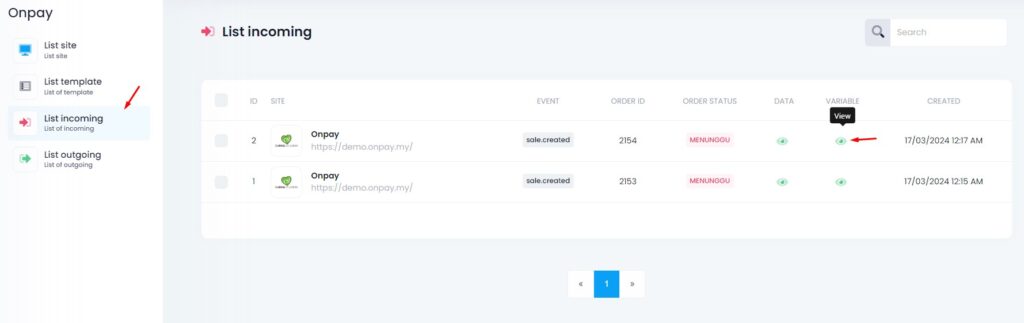

Step 9: Copy Variable

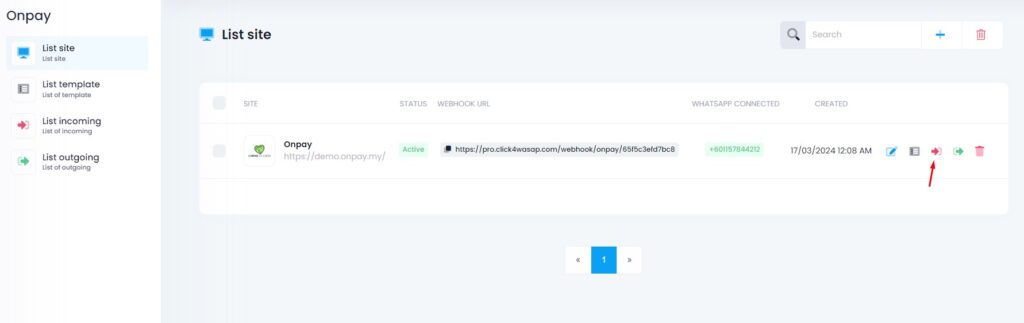

  • Click View in List Incoming → Variables
  • Copy the variables available from the form to use in your template message.

Step 10: Create Template

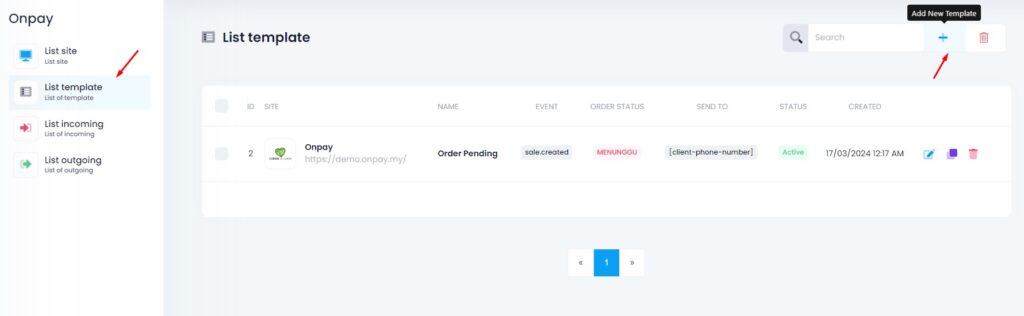

Go to: Integrations > OnPay > List Template > Add New Template

Fields to Fill:

    • Template Name
      ➤ Enter a name for this template (e.g., DEMO Created)

    • Website Name
      ➤ Select the connected OnPay site from the dropdown (e.g., Demo Onpay)

    • Status
      ➤ Set to Enable to activate this template

    • Event
      ➤ Choose the trigger for sending:

      • sale.created – Order just created

      • sale.confirmed – Payment confirmed

      • sale.canceled – Order canceled

    • Sent to
      ➤ Choose whether to send to:

      • Customer

      • Seller

    • Default Country Options
      ➤ Select the default country code (e.g., Malaysia +60)
      This helps validate and format incomplete customer numbers.

    • Order Status
      ➤ Enter the specific status that will trigger the message (e.g., MENUNGGU)

    • Filter Options (Optional)
      ➤ Enable if you want to add specific conditions

You can insert variable at Text & Media Caption.

⚙️ Template Send Settings

🕘 Runs

  • Multiple Times – The template will be sent every time the selected status is triggered.

  • Once – The template will be sent only one time.

⏱️ Time Send

  • Instant – The message will be sent immediately when the condition is met.

  • Custom (Follow Up) – The message will be sent after a custom delay (e.g., 1 hour later).

🔄 Recheck Order Status

  • No – The message will be sent after the delay without checking if the status has changed.

  • Yes – Before sending, the system will recheck the order status. If it has changed, the message will not be sent.

Filter Option

If you want to send a message only when specific conditions are met, enable the Filter Options.

Case-Sensitive Filter (Aa Checkbox)

You will see an Aa column with a checkbox next to each filter condition.

✅ What It Does:

  • Tick the checkbox to enable case-sensitive matching
    → This means Selangorselangor

  • Leave it unticked for case-insensitive matching
    → This means Selangor = selangor = SELANGOR

Custom Filter Label

The Custom Filter Label allows you to define a specific variable from your WooCommerce Incoming Data that will appear as a filter option when creating templates.

Check Variables in Incoming List
→ Go to List Incoming
→ Click View on an order
→ Copy any valid variable (refer step 9)

Paste the full variable name (including brackets) into the Custom Filter Label field in the List Site setup.

This variable will:

    • Be used to label and group your incoming data

    • Show up in filters or templates if referenced properly

Step 11: Create Dummy Order Again at OnPay

Repeat a dummy order to test if the full flow works correctly.

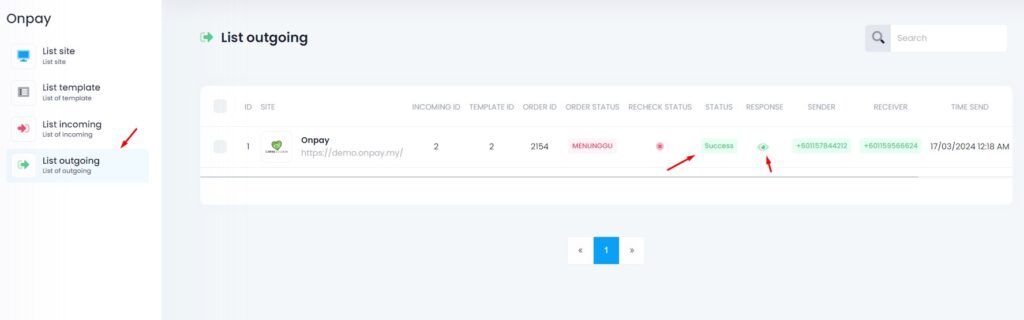

Step 12. List Outgoing

📥 Incoming & Outgoing Data

After placing a dummy order, if your setup is correct:

  • You will see data in both List Incoming and List Outgoing

    (Only if you’ve set up a valid List Template)

Example JSON Response

What This Means:

The system could not send the message because:

  • The phone number field is empty, or
  • The number is in an invalid format (e.g., missing country code or incorrect variable)

✅ How to Fix:

  • Make sure the correct phone variable (e.g. [phone]) is used in your template
  • Ensure the number includes a country code (e.g., 60123456789)
  • Double-check the form captures phone input properly
  • Use Default Country Options to help validate numbers
